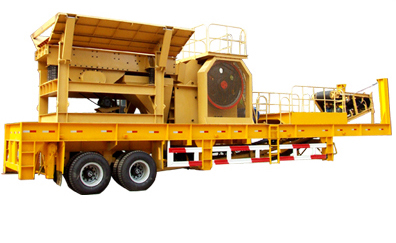

Mobile crushing plant,Mobile crusher a new designed rock crushing & screening plant, which is flexible, convenient and strong in mobility, so it can save a large construction capital and relocation. Raw Materials can be broken at the local place without being transported again, and also can be moved with the further exploitation of the raw material, which saves a large number of transportation cost. Break-day corporation specializes in producing crusher, screen, transportation, other rock breaking, minerial processing equipment. On the basis of professional technology, we optimize and introduce two large and three small series of crushing and screening equipment. The mobile series is tracked crushing plant, and the portable series is tyred crushing plant. Each large series is divided into three series: rough, medium and fine crushing and screening mobile plant. Therefore, it can fully adapt to the various mobile crushing and screening spots, and creates more new business opportunities for customers while reducing cost of production.



1. Complete plant;
All the machines are installed on the trailer, Occupation space is saved, Working efficiency is enhanced;
2. Strong flexibility;
It can be moved from one place to another place;
3. High efficiency;
4. Great work and easy maintenance.



Model	Transportation length(mm)	Transportation width(mm)	Transportation height(mm)	Max. Length(mm)	Max. height (mm)	Max. width(mm)	Belt conveyor height(mm)	Tyres configuration	Weight （T）
YG93E69	12500	2450	4000	13200	4600	3100	2700	And cucbaa multi-axial	42 42
YG1142E710	14000	2450	4800	15000	5800	3300	2700	And cucbaa triaxial	55
YG1349E912	15500	3000	4800	17000	5800	3500	3000	And four shaft installed	72



Bodywork parameters:Site height:1720MM ,Tyre site height difference:380MM.
