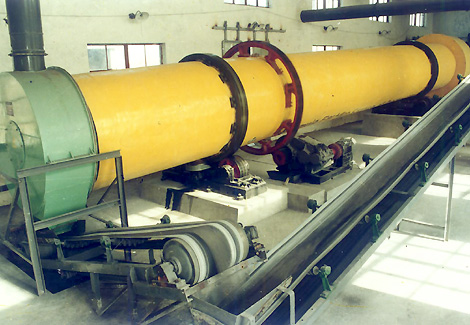

Single tube cooling machine
Single tube cooling machine is used to cool the clinker out from the rotary kiln and recyle the hyperthermia heat carried by heat clinker, so as to enhance the temperture at the time of secondary kilning. In additon, the rapid cooling of hyperthermia heat will help to improve the quality and grinderbility of materials.
Single tube cooler cools the materials on basis of nagative pressure inside the kiln, thus there is no need dealing with remaining dust air.
Characteristics:
1. simple structure, conveninent operation and maintenance and high rate of running
2. slight pollution to environment, using equipped with rotary, widely used in building material, metallurgical and chemical industry.
Main standard as follows:
Feeding temperture : 1300℃
Discharging temperture: ≤180℃
Secondary air temperture : 800～900℃
Efficiency of heat: >65%
Tube material: 16Mn thickness:16mm
|
Specification |
Rotate speedr/m |
Rated outputt/h |
speed reduce |
Motor | |
|
Model |
power(kw) | ||||
|
φ1.8×20m |
5.44 |
5-7 |
JZQ750-I-1Z |
J03-180M-4 |
22 |
|
φ2×20m |
4.54 |
7 |
JZQ750-I-1Z |
Y180-4 |
22 |
|
φ2×22m |
4.54 |
7-8.5 |
JZQ750-I-1Z |
Y180-4 |
22 |
|
φ2.2×22m |
0.56-5.57 |
12 |
ZL85-15-I |
YCT280-4A |
30 |
|
φ2.2×22m |
5.49 |
8.5 |
JZQ750-II-1Z |
Y180L-4 |
22 |
|
φ2.2×22m |
5.49 |
8.5 |
JZQ750-II-2Z |
Y180L-4 |
22 |
|
φ2.5×22m |
3.5 |
14 |
ZL100-35.5-I |
YR280M-6 |
55 |
|
φ2.5×22m |
2.5-4.5 |
12-14 |
ZL100-15-I |
YCT315-4B |
45 |
|
φ2.5×25m |
3.5 |
14 |
ZLH100-35.5-I |
YR280M-6 |
55 |
|
φ2.5×25m |
1.54-4.54 |
15-18 |
ZL100-15-I |
YCT355-4A |
55 |
|
φ2.8×28m |
1.35-3.91 |
15-18 |
JH320C-SW-40 |
YTSP280S-4 |
75 |
|
φ3×28m |
2-4 |
17 |
ZL115-15-II |
YCT355-4B |
75 |
|
φ3×30m |
3.056 |
18.5 |
ZL115-15-I |
JS115-6 |
75 |
|
φ3×32m |
3.056 |
21.5 |
ZL115-15-II |
Y315M-6 |
90 |
|
φ3×36m |
3.10 |
23 |
ZL115-15-II |
JS115-6 |
75 |
|
φ3.2×36m |
2.74-4.67 |
28 |
firstZL130-15-I secondZL50-14-II |
firstYCTD355-4B second Y180L-6 |
132 15 |
|
φ3.2×36m |
0.66-4.93 |
28 |
firstJH450C-SW-35.5
second ZL50-14-I |
firstZ4-225-31 second Y180L-6 |
132 15 |
|
φ3.2×36m |
4.17 |
28 |
firstNZS955-40II secondZL42.5-15-II |
firstY315S-4 second Y132M-4 |
110 7.5 |
|
φ3×38m |
3.14 |
27 |
firstZSY500-50-V second ZL180-20-II |
firstY315L1-4 secondY160L-6 |
160 11 |
|
φ3.2/3.8/3.2×33m |
3.29 |
30-35 |
ZL130-15-II |
Y315L2-6 |
132 |
|
φ3.4×40m |
1.54—4.47 |
30-32 |
ZL130-15-II |
YCTD355-4B |
132 |
|
φ3.5×36m |
2.73 |
30-33 |
firstJH450C-SW-40
secondZL50-14-I |
firstYR315M1-6 secondY180L-6 |
132 15 |
|
φ3.6×40m |
3.28-1.09 |
34 |
firstZL130-16-I secondZL42.5-11-I |
firstJZS2-11-1 secondY160M-6 |
160 7.5 |
Yu Feng Heavy Industry is a leading domestic manufacturer of Single tube cooling machine manufacturer,sales to many countries and regions around the world.Please contact our Single tube cooling machine department,in order to know more information about Single tube cooling machine.
