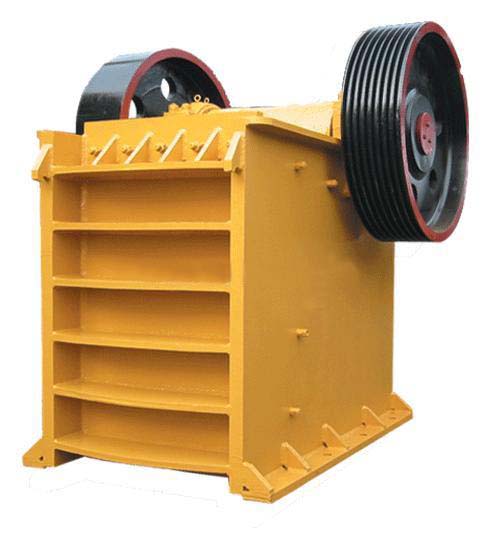

Jaw crusher

Application of Jaw Crusher:
Jaw Crusher is widely applied to crush high hardness, mid hardness and soft rocks and ores such as slag, construction materials, marble, etc. The pressure resistance strength is under 200Mpa, that is, suitable for primary crush. Each model has a large feed opening for its size and an ideal nip angle, giving smooth material flow, high reduction efficiency and high capacity. Their simple design conceals many advanced features that give easy operation, simple maintenance, long life and a low cost per ton.

The structure of Jaw Crusher:
The structure of Jaw Crusher includes Main Frame, Main Axle, Roller Bearings, Eccentric Shaft, Jaw Plates, Side Plates, Toggle Mechanism, Fly Wheels and Springs.

The Features of Jaw Crusher:
1. Jaw Crusher is of various types;
2. Jaw Crusher is suitable for crushing maximum, medium and minimum stones;
3. The operating principle of Jaw Crusher is easy to be operated;
4. The structure of Jaw Crusher is simple and it is easy to maintain;

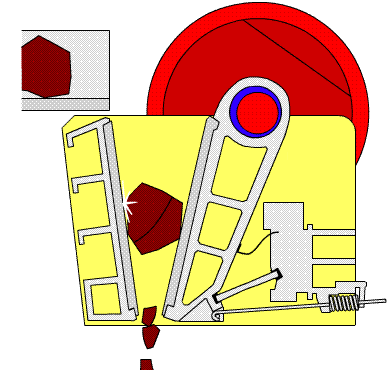

Operating principle:
uses motor as its power. Through the motors wheels, the eccentric shaft is driven by the triangle belt and slot wheel to make the movable jaw plate move by a regulated track. Therefore, the materials in the crushing cavity composed of fixed jaw plate, movable jaw plate and side-lee board can be crushed and discharged through the discharging opening.



Model
Max feed size
(mm)
Maximum feeding granularity(mm)
adjusting range
(mm)
Handling ability
(t/h)
Shaft speed(r/min)
Motor power(kw)
total weight
(t)
Overall dimensions(L*W*H)
(mm)
PE-150×250
150×250
125
10-40
1-3
250
5.5
0.8
720×660
×850
PE-200×300
200×300
180
15-50
2-6
260
7.5
1.2
910×750
×990
PE-200×350
200×350
180
18-70
3-10
260
11
1.5
1000×870
×990
PE-250×400
250×400
210
20-60
5-20
300
15
2.8
1300×1090
×1270
PE-400×600
400×600
340
40-100
16-60
275
30
7
1730×1730
×1630
PE-500×750
500×750
425
50-100
40-110
275
55
12
1980×2080
×1870
PE-600×750
600×750
500
150-200
80-240
275
55
15.8
2070×2000
×1920
PE-600×900
600×900
500
65-160
50-180
250
55
17
2190×2206
×2300
PE-750×1060
750×1060
630
80-140
110-320
250
90-110
29
2660×2430
×2800
PE-800×1060
800×1060
640
160-220
130-330
250
110
29.8
2710×2430
×2800
PE-830×1060
830×1060
650
160-220
150-336
250
110
30.7
2740×2430
×2800
PE-870×1060
870×1060
660
200-260
190-336
250
110
31.5
2810×2430
×2800
PE-900×1060
900×1060
685
230-290
230-390
250
110
33
2870×2420
×2940
PE-900×1200
900×1200
750
95-165
220-450
200
110
52
3380×2870
×3330
PE-1000×1200
1000×1200
850
195-265
315-500
200
110
55
3480×2876
×3330
PE-1200×1500
1200×1500
1020
150-300
400-800
180
160
100.9
4200×3300
×3500
PEX-150×750
150×750
120
18-48
8-25
320
15
3.8
1200×1530
×1060
PEX-250×750
250×750
210
25-60
13-35
330
30
5.5
1380×1750
×1540
PEX-250×1000
250×1000
210
25-60
16-52
330
30
7
1560×1950
×1390
PEX-250×1200
250×1200
210
25-60
20-61
330
37
9.7
2140×1660
×1500
PEX-300×1300
300×1300
250
20-90
16-105
300
55
15.6
2720×1950
×1600


Yu Feng Heavy Industry is a leading domestic manufacturer of Jaw Crusher manufacturer,sales to many countries and regions around the world.Please contact our Jaw Crusher department,in order to know more information about Jaw Crusher.
